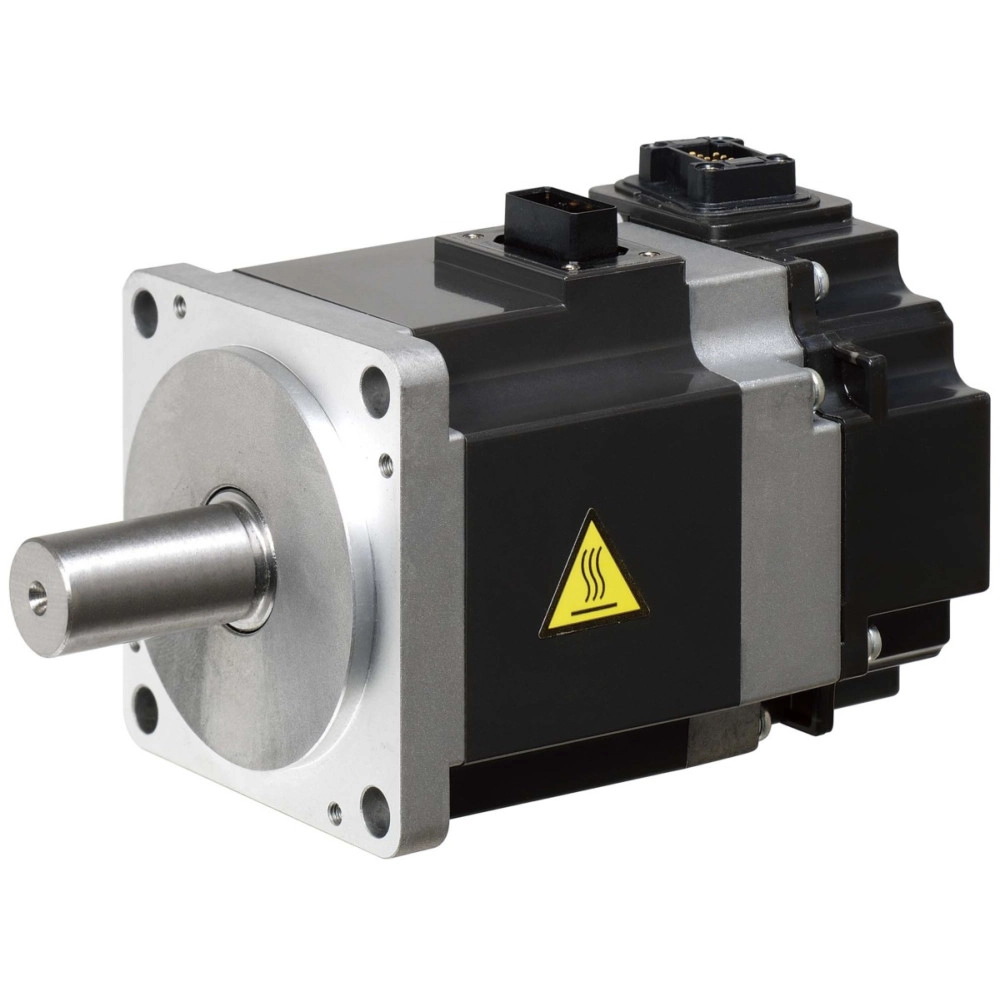

Mitsubishi HF-KN23BK High-Precision Servo Motor
Product Description
Mitsubishi HF-KN23BK Servo Motor - Precision Engineering for Advanced Motion Control
The Mitsubishi HF-KN23BK Servo Motor stands at the forefront of precision motion control technology, engineered to meet the demands of the most challenging industrial applications. Designed by Mitsubishi Electric, a global leader in automation and control systems, this servo motor delivers unmatched performance, reliability, and efficiency.
Key Features:
High Precision and Accuracy: The HF-KN23BK Servo Motor is equipped with advanced feedback mechanisms, ensuring exceptional positioning accuracy and repeatability. This precision is critical for applications requiring tight tolerance control and high-speed operations.
Robust Power Output: With a nominal torque rating and power output tailored for high-performance tasks, this servo motor is capable of handling demanding loads and delivering consistent, reliable performance across various industrial processes.
Compact and Efficient Design: The motor’s compact form factor allows for flexible installation options, making it ideal for space-constrained environments. Its energy-efficient design minimizes power consumption while maintaining optimal operational efficiency.
Enhanced Durability: Built to withstand harsh industrial conditions, the HF-KN23BK features a rugged construction with superior heat dissipation properties. This ensures long-term reliability and minimizes maintenance requirements in demanding environments.
Seamless Integration: The servo motor is designed for compatibility with Mitsubishi’s comprehensive range of motion controllers and drives, facilitating easy integration into existing systems and enhancing overall system performance.
Advanced Control Capabilities: Utilizing sophisticated control algorithms, the HF-KN23BK offers smooth and precise motion control, reducing vibration and noise levels. This enhances the overall quality of the finished product and extends the lifespan of mechanical components.
Technical Specifications:
- Motor Type: AC Servo Motor
- Rated Output: [Specify Output Power, e.g., 0.75 kW]
- Rated Torque: [Specify Torque Rating, e.g., 2.3 Nm]
- Rated Speed: [Specify Speed, e.g., 3000 RPM]
- Feedback Type: Absolute Encoder
- Cooling Method: [Specify Cooling Method, e.g., Air-Cooled]
- Mounting Type: [Specify Mounting Type, e.g., Flange Mount]
Applications:
The Mitsubishi HF-KN23BK Servo Motor is ideal for a wide range of applications, including but not limited to:
- Robotics: Precision control for robotic arms and automated assembly lines.
- CNC Machinery: High-speed, accurate movements for cutting, milling, and drilling operations.
- Packaging: Reliable performance in high-speed packaging and labeling systems.
- Material Handling: Efficient control for conveyors and automated material handling equipment.
Why Choose Mitsubishi HF-KN23BK?
Choosing the Mitsubishi HF-KN23BK Servo Motor means investing in a product that combines Mitsubishi Electric’s extensive experience in servo technology with the latest advancements in motion control. Its superior performance, durability, and ease of integration make it the preferred choice for engineers and system integrators seeking to enhance the capabilities and efficiency of their automation systems.
For more information or to place an order, please contact our sales team or visit our website.
SEO Keywords: Mitsubishi HF-KN23BK Servo Motor, precision servo motor, high-performance servo motor, Mitsubishi Electric servo motor, AC servo motor, motion control motor, industrial servo motor, advanced servo technology.
Feel free to adjust any specific technical details as needed to match the exact specifications of the HF-KN23BK model you are describing.
Mitsubishi HF-KN23BK Servo Motor
| Type | HF-KN |
| Rated Torque (Nm) | 0,64 |
| Maximum Torque (Nm) | 1,9 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4500 |
| Inertia (kg*cm2) | 0,31 |
| Brake | YES |
| Shaft Type | KEYWAY |
| Protection Class | IP65 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Resolution (p/rev) | 131072 |
| Width (mm) | 60 |
| Height (mm) | 60 |
| Depth (mm) | 116,8 |
| Weight (kg) | 1,4 |
| European Order Code | 253949 |
| Global Order Code | 0HZ991-00000G |
| Product hierarchy | IAK30219 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Discontinued Material |
| Logistic Class | C |
| Gross Weight | 1.454 KG |
| Volume | 2.622 CDM |
| Length | 24 CM |
| Width | 11,5 CM |
| Height | 9,5 CM |
| Commodity Code | 85015100 |
| Country of Origin | JP |
| Predecessor | 213088 HF-KE23BKW1-S100 |
| Discontinued (EOL) | 05.01.2015 |
| Last Time Buy (LTB) | 31.12.2015 |
| End of Service (EOS) | 31.12.2022 |
| Successor | 282634 HG-KN23BK |
| Successor Information | SYSTEM CHANGE REQUIRED |
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
